Imaging Module 910

Slit lamp documentation at the push of a button

Rely on the leader of slit lamp imaging and let Haag-Streit's Imaging Module 910 take care of the details. Be confident that you are getting outstanding and expressive images while concentrating fully on examining your patients.

01 Product information 02 More details 03 Downloads

Ensure the sharpest and most expressive image possible

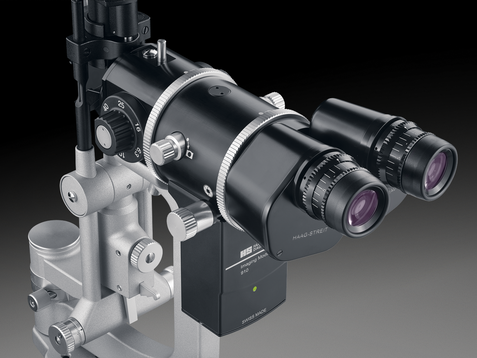

Ready when you are!

The Imaging Module 910: ready when you need it

Finally, the days of cumbersome slit lamp imaging are over. By the turn of a knob, the Imaging Module 910 shares your view within your microscope directly on your screen—instantly.

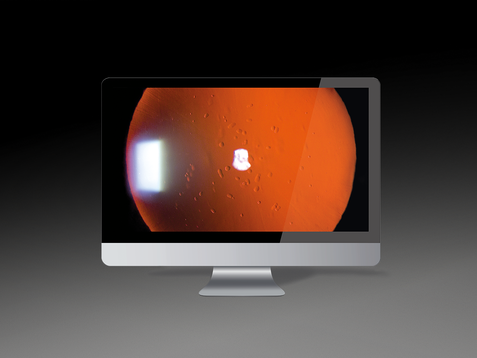

A striking image with every shot

The camera sensor and the superb optics of the Imaging Module 910 provide you with outstanding image quality—but that’s not all.

With conventional slit lamp cameras, the success rate of conclusive images is often disappointing. To overcome this, the Imaging Module 910 provides smart features that work hard for you in the background. A performant auto-exposure mode in combination with the automatic aperture control guarantees great illumination at all times. In addition, the image selection algorithm ensures that you get the sharpest and most expressive image possible. Simply concentrate on your examination and let the Imaging Module 910 do the rest.

Ideal workflow - no distraction

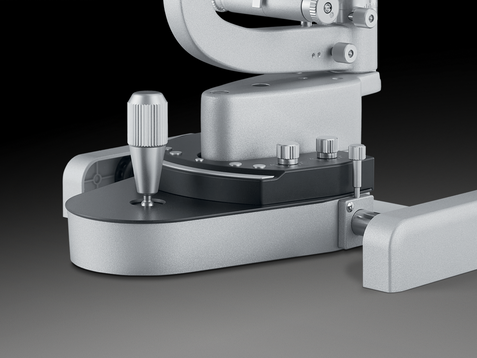

Versatile control panel

The control panel allows you to operate both the camera and the slit lamp illumination. Located in front of the joystick of the slit lamp, it can be used blindly while focusing on the patient. The compact, modern design conforms to the design of the slit lamp. Moreover, the Imaging Module comes as a component of the whole system, supporting an ideal examination workflow.

Work the way you want

Standalone or EyeSuite mode

We believe that tools should adapt to your needs and not vice versa. For this reason, the Imaging Module 910 can be used in different ways and integrated into many different environments.

Software screenshots

View fullscreen

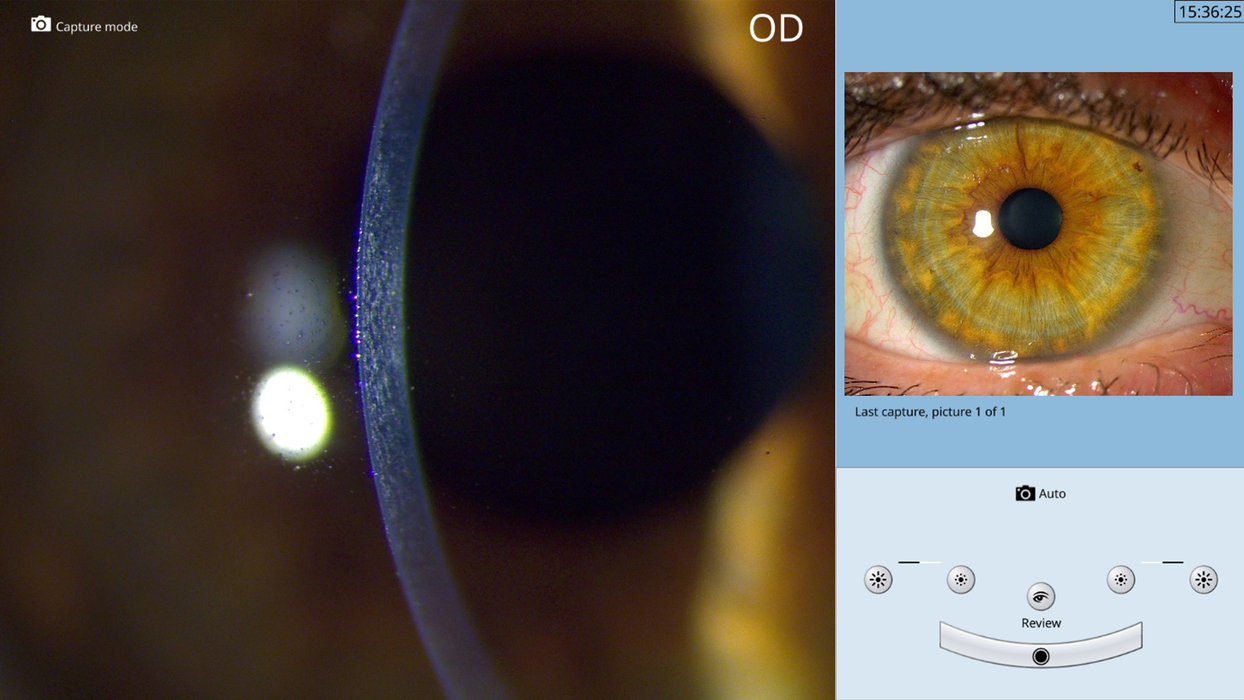

Image capture mode

Imaging Module 910 App

The image capture mode of the Imaging Module 910 App shows the observed area and allows access to the most important functions in standalone mode. In addition, the last image captured is displayed.

View fullscreen

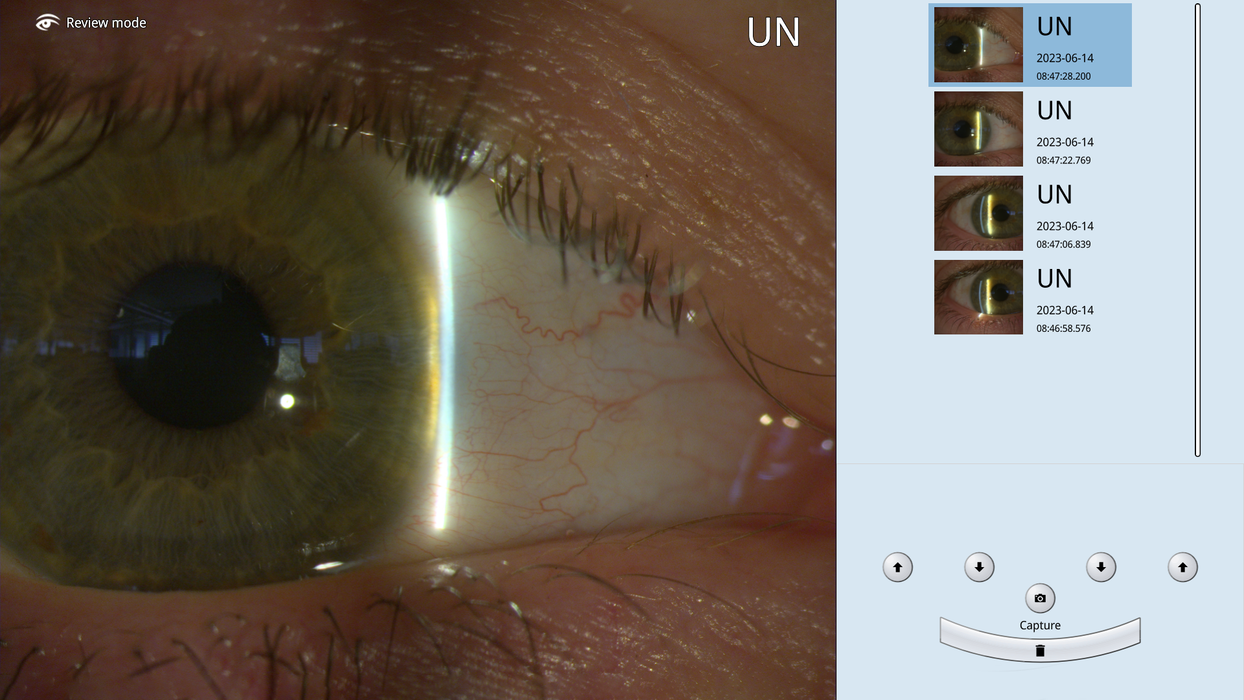

Image review mode

Imaging Module 910 App

In the review mode, all captured images of the session are listed in chronological order. For convenience, simply scroll through the thumbnails while the selected image is displayed at a large size.

View fullscreen

Imaging Module 910 App

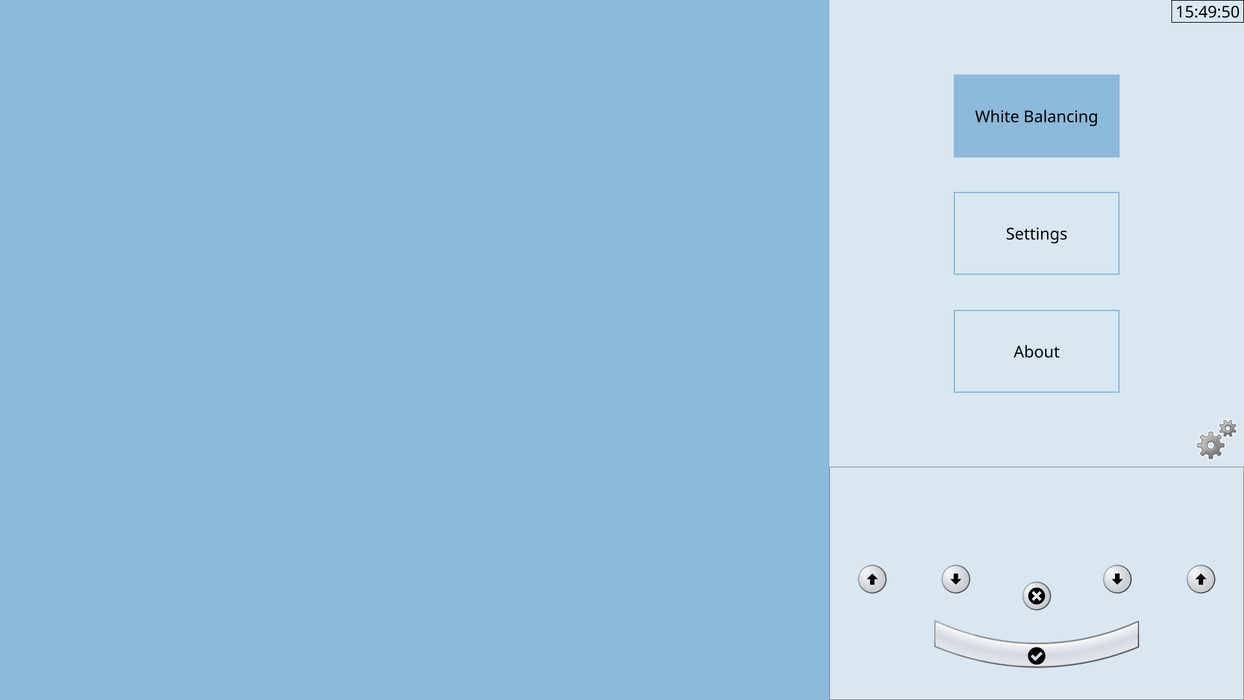

The menu of the Imaging Module 910 App provides access to many useful functions and settings, such as white balancing, capture mode settings, the Help menu and more.

View fullscreen

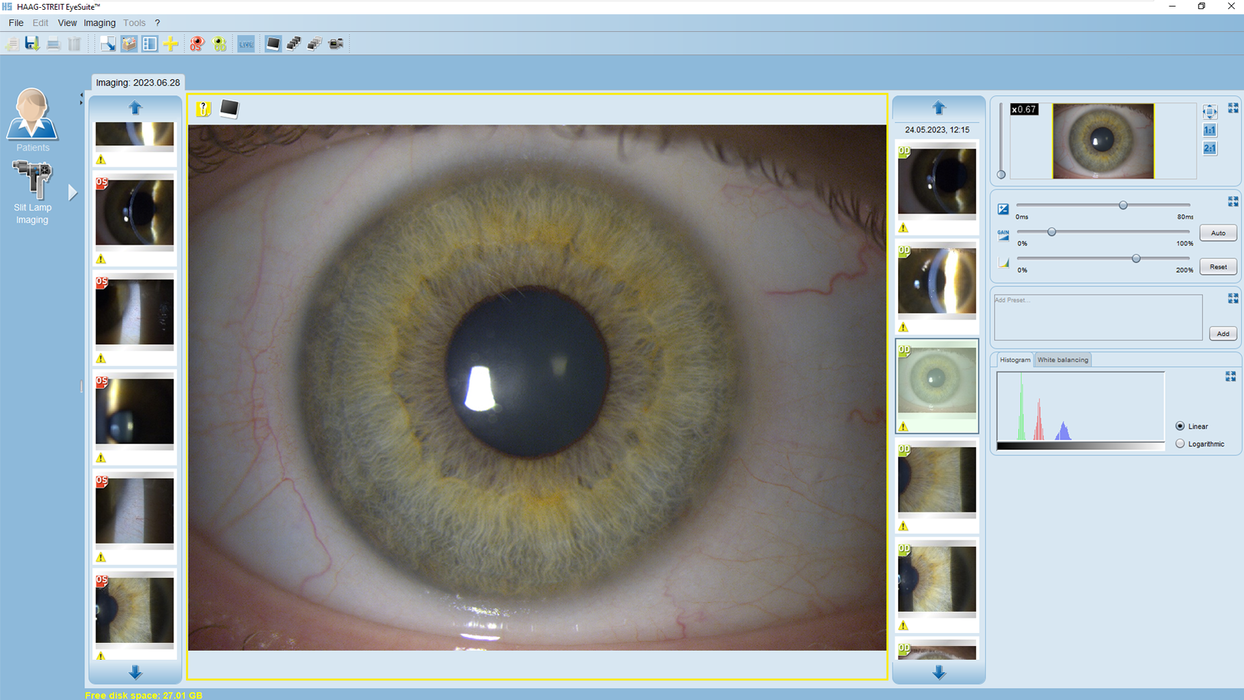

The image acquisition control center

Image capturing screen

The image capturing screen provides you with all the necessary details about the image acquisition process. You can directly change the camera settings, capture modes, plus set and access the camera’s presets. Furthermore, your captured images are available as thumbnails.

View fullscreen

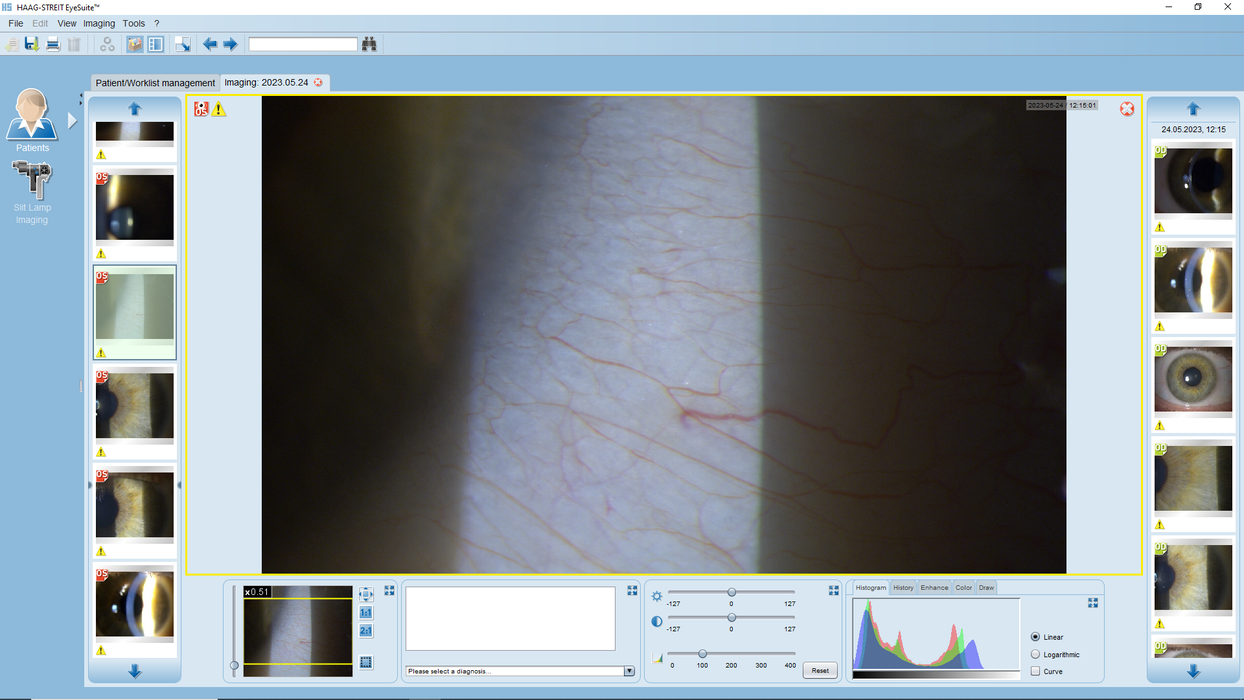

Inspect your work and educate your patients

Image viewer

The EyeSuite image review screen allows easy inspection and comparison of captured images. It also allows you to present your slit lamp findings to your customers in a simple yet expressive way.

View fullscreen

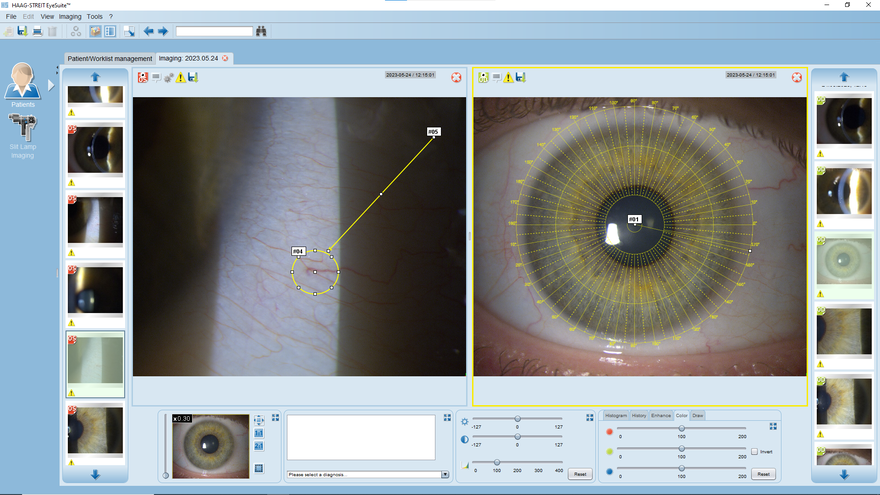

Efficient image processing

Image editing

Modify your taken images to your liking. EyeSuite Imaging offers you a comprehensive set of image processing tools. Amongst other functions, enhance contrast, sharpen, or crop your images. Add overlay grids, or use the drawing tools to highlight certain areas of interest. Besides image editing, you can also add text or use the built-in ICD classification.

View fullscreen

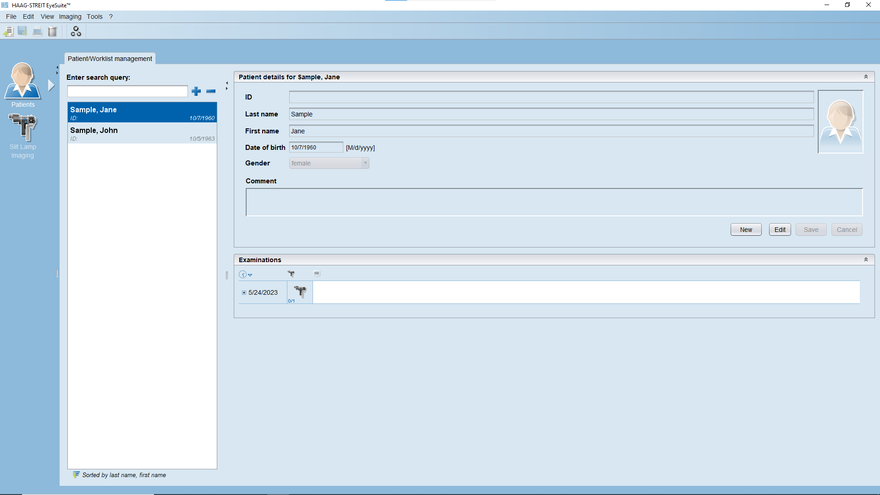

All images quickly accessible

Patient management

The integrated, well-structured patient management system allows easy access to your previous imaging sessions, making the software a perfect team player for daily practice. You'd rather have your EMR manage your patient flows? EyeSuite allows for easy integration into your existing patient management system.
