/ Products / General diagnostics / Slit lamps
Confidence that lasts

Slit lamps

Haag-Streit slit lamps have earned a legendary reputation for their performance and durability. For over 90 years, our meticulous attention to detail and our commitment to produce the finest slit lamps provides you with confidence that lasts.

BQ 900

Slit lamp Our most versatile slit lamp

BP 900

Slit lamp The progressive slit lamp

BI 900

Slit lamp The modernized classic slit lamp

BM 900

Slit lamp The traditional slit lamp

BX 900

Slit lamp The photographer’s slit lamp

Slit lamp accessories

Slit lamp Useful accessories for our slit lamps

Compare our products

BQ 900 BP 900 BI 900 BM 900 BX 900
Microscope
Galilean microscope ● ● − − ●
Kepler microscope − − ● ● −
Stereo angle 13° ● ● ● ● ●
Stereo variator (stereo angle 4.5°) ○ − − − □
Inclined eyepiece ○ − − − ○
Yellow filter ○ ○ ● − ○
Second observer tube ○ − − − □
Beam splitter ○ − − − □
Magnification (Std. Eyepieces)
6.3 × ● − − − ●
10 × ● ● ● ● ●
16 × ● ● ● ● ●
25 × ● ● − − ●
40 × ● − − − ●
Illumination
LED ● ● ● ● ●
Background ○ ○ ○ − ●
Tilt ● ● ● ● ●
Defocusing ● ● ● ● ●
Short illumination mirror ○ ○ ○ ○ ○
Filter
Gray ● ● ● ● ●
Red-free ● ● ● ● ●
Blue ● ● ● ● ●
Slit
Width (continuous) (mm / inch) 0 - 14 mm / 0 - 0.55 inches 0 - 14 mm / 0 - 0.55 inches 0 - 14 mm / 0 - 0.55 inches 0 - 8 mm / 0 - 0.315 inches 0 - 8 mm / 0 - 0.315 inches
Length (continuous) (mm / inch) 1 - 14 mm / 0.394 - 0.55 inches 1 - 14 mm / 0.394 - 0.55 inches 1 - 14 mm / 0.394 - 0.55 inches 1 - 8 mm / 0.039 - 0.315 inches 1 - 8 mm / 0.039 - 0.315 inches
Test mark fixation star ● ● ● ● ●
Imaging
IM 910 ○ − − − −
IM 600 ○ ○ − − −
Imaging Set BI 900 − − ○ − −
DSLR camera connector − − − − ●
Integrated flash (slit and background) − − − − ●
Tonometry
AT 900 mod. BQ ○ ○ − − □
AT 900 mod. R − − ○ ○ −
AT 900 mod. T ○ ○ ○ ○ −
Dimensions
Weight (kg / lbs) 12.7 kg / 20.28 lbs 12.3 kg / 27.11 lbs 12 kg / 26.45 lbs 11.4 kg / 25.13 lbs 14.8 kg / 32.63 lbs
Dimensions L x W x H (mm / inch) 305 x 332 x 700 mm / 12 x 13 x 27.56 inches 305 x 332 x 700 mm/ 12 x 13 x 27.56 inches 310 x 332 x 700 mm / 12.2 x 13 x 27.56 inches 290 x 332 xx 700 mm / 11.42 x 13 x 27.56 inches 370 x 332 x 800 mm / 14.57 x 13 x 31.5 inches
● standard | ○ optional | − not available | □ not recommended

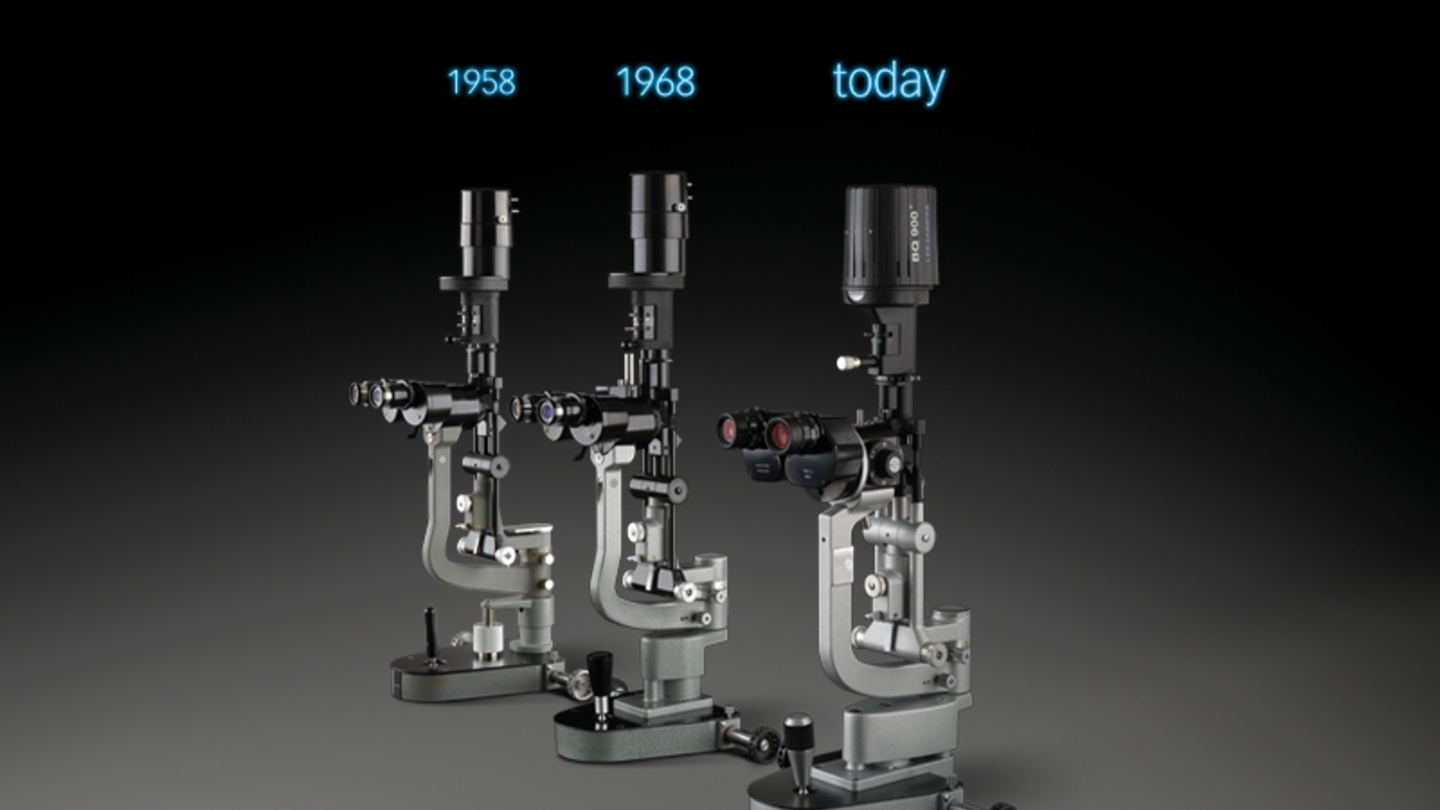

Leading since 1933

Model 320—the slit lamp that started the legacy

Developed in close collaboration with Dr. Hans Goldmann, the first Haag-Streit slit lamp was introduced in 1933.

In 1937, its successor, the model 360 was presented, featuring a new single lever to make one-handed operation possible. The cornerstone was laid for a mutually fruitful collaboration with Professor Goldmann.
