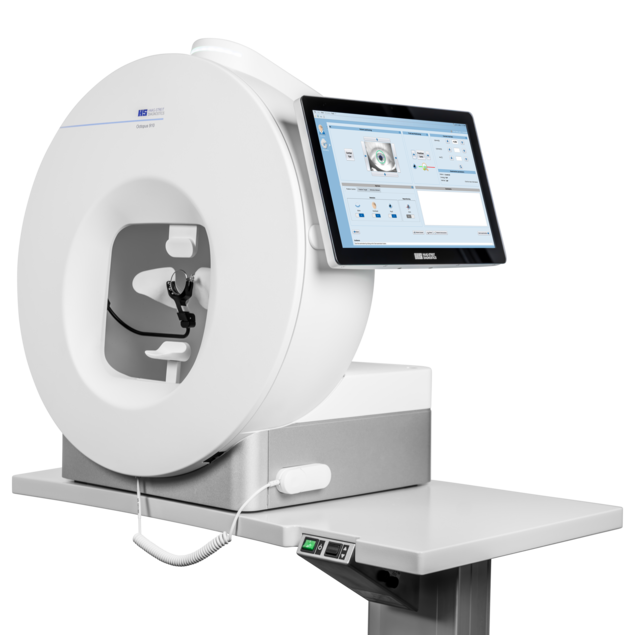

Meet Octopus 910: Trusted. Comprehensive. Smart.

Advanced glaucoma management

From onset to end-stage

Caring for glaucoma patients means monitoring their condition from onset to end-stage. Detecting early defects is just as important as tracking changes in later stages of the disease. Preserving the remaining central visual field can make a meaningful difference to a patient's quality of life. We understand that glaucoma management involves more than visual fields alone, which is why Polar Analysis supports comparison between functional findings and structural information. The Octopus 910 also manages visual field data from multiple devices, including HFA, providing a flexible clinical ecosystem that supports your needs today and in the future.

Read more

Enhanced efficiency

Minimize testing errors & improve patient experience

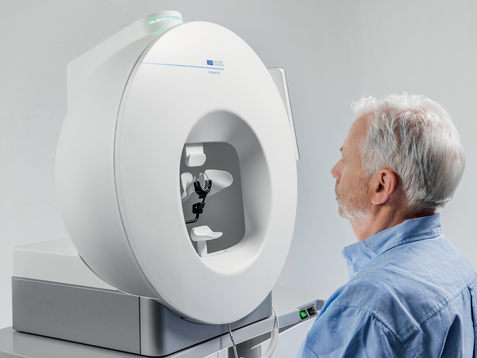

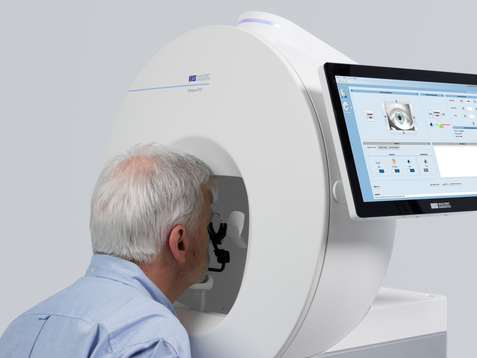

Over the past decades, innovations in perimetry have focused primarily on diagnostic analysis, and Haag-Streit has consistently been at the forefront of these developments. Patient set-up, however, remains a major source of error. Further, it can cause patient discomfort and add unnecessary time to examinations. To address these challenges, Octopus 910 utilizes a motorized trial lens holder. Together with an innovative approach to occluding the eye – plus our single chinrest and automated patient positioning system – we set a new standard in patient positioning and patient comfort

Read more

Improved reliability

Toward a patient-focused test

Visual field testing is subjective and strongly dependent on patient cooperation. To reduce this influence, Octopus 910 implements audio-assisted patient guidance, ensuring consistent supervision and helping deliver more comparable results. If needed, the examiner is notified and can provide additional support during the test. To reduce operator uncertainty, Octopus 910 also provides step-by-step guidance and clear system feedback, helping streamline training and support reliable results from the very first examination.

Read more

See Octopus 910 in action

Octopus 910 basic Octopus 910 Pro
Test methods
White-on-white perimetry SAP ● ●
Blue-on-yellow perimetry SWAP ● ●
Flicker perimetry ● ●
Blue and green-on-white perimetry ● ●
Red-on-white perimetry ○ ●
Networking
DICOM connectivity ○ ○
EMR connectivity ● ●
Remote control ● ●
Connections: USB, Ethernet, Display Port ● ●
Statistical export ○ ●
Visual field import (Octopus 101,123,300,600,900, HFAII & HFA3) ● ●
Test strategies
TOP Strategy (full threshold, 2-4 min) ● ●
Dynamic (adaptive step size, 6–8 min) ● ●
Normal (4-2-1 bracketing, 10–12 min) ● ●
Other: Low Vision, 2-Level, 1-Level, 1 Minute Screening ● ●
Test library
Central: F, M, 10-2, G, 24-2, 24-2C, 32, 30-2, S28 ● ●
Peripheral: 07, C40, C64, C76, C80 ● ●
Driving: Esterman (monocular, binocular), EDT, German driving licence ● ●
Disability: BT (Blepharoptosis), BG (German Blindness) ● ●
N1 (Neurological), D1 (Diabetes), B (Blind spot) ● ●
Custom test ○ ●
Visual field analysis
Global indices (MD, DD, LD, sLV, CsLV) ● ●
Reliability indices (FP, FN, RF) ● ●
VFS Visual Field Score ● ●
GCT - Glaucoma Cluster Test ● ●
Glaucoma staging: Brusini, HPA ● ●
Defect curve ● ●
Cluster & polar trend ● ●
Examination support
Motorized trial lens holder ● ●
Motorized single chin- & forehead rest ● ●
Automatic pupil positioning ● ●
Automatic trial lens holder positioning ● ●
Fixation control
Video eye monitoring ● ●
Pupil detection ● ●
Blink detection ● ●
Automatic repositioning ● ●
Head detection ● ●
Autovertex ● ●
● standard | ○ optional | − not available | □ not recommended
